Specifications:

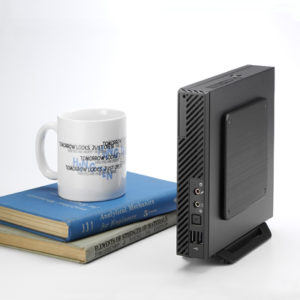

Case Type： L1 Compact PC case
MB Form factor: Thin Mini. ITX
Cooling system: Avance’s cooler module support thermal solution till i7 4785T or 4765T( 35W), low noise design
Case Dimension: 183.1 x 37 x 186.5 mm
Case weight: 1.5 kgs
Acoustic performance: 21 dB
Material: Metal SGCC T= 0.6mm
Case Color: Black, powder coating
PSU: external 19V DC adapter 65W with 2x USB port
Drive Bays: 1×2.5 ” HDD or SSD
Front I/O: 2 x USB2.0 (or USB3.0) , 1x Audio , 1x Microphone
Dual Side VESA mount design: 1) support VESA mount on back side of panel
2) support standard height adjust PC stand
Screw-less: top cover
Security: cable cover, Kensington lock, security screw, intrusion switch cable
PC foot stand: 1) Stand alone foot stand
2) multi-function stand
support 1x ODD (SATA to USB) support 1x QI charger
support kensington lock and security screw
WiFi Antenna: support 1x WiFi Antenna
Speaker: support 1x speaker
Thin Min ITX Motherboard Model:
Vig820S – Asus Q87T
Vig750S- Asus H110T
Vig850G – Gigabyte MDQ17AI
Vig711W_rev2_TH81GE-SA (wibtek)
