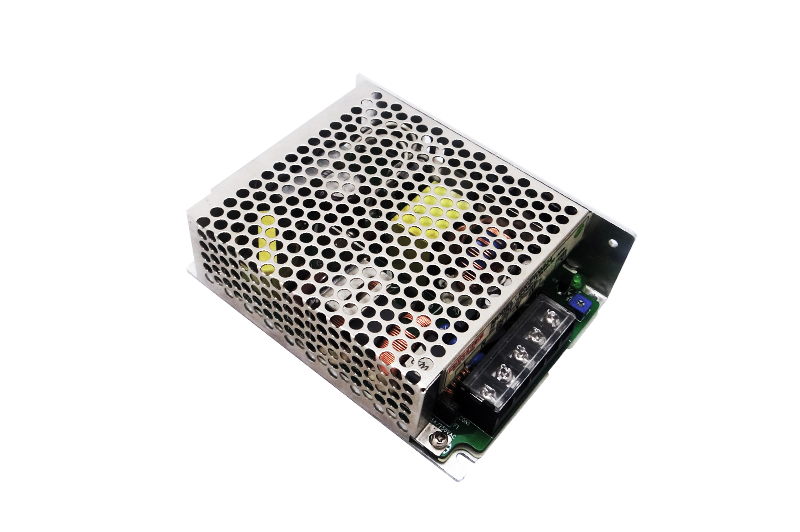

Product Name： IKGKF-100-series
Model：IKGKF-100
Notes： 100W AC/DC power supply, 90Vac~264Vac input
Built-in Active PFC function, PF>0.93
Suitable for peak load application
PCB soldering side with conformal coating
Withstand 300Vac surge input for 5 secs
OLP/SCP/OPP Protections
Applications: CNC system, Industrial Robot, man-machine interface,PLC, DC motors.
|
MODEL |
IKGKF-100-5 |
IKGKF-100-12 |
IKGKF-100-24 |
IKGKF-100-48 |
||
|
OUTPUT |
DC Output |
5V |
12V |
24V |
48V |
|
|
Rated Current |
20A |
8.5A |
4.2A |
2.2A |
||
|
CurrentRange Note 1 |
0~20A |
0~8.5A |
0~4.2A |
0~2.2A |
||
|
Ripple and Noise Note 2 |
0~70℃ |
≤150mV |
≤150mV |
≤150mV |
≤150mV |
|
|
-20~0℃ |
≤150mV |
≤150mV |
≤150mV |
≤200mV |
||
|
Voltage ADJ. Range |
3.3V—5.5V |
10~15V |
21~27V |
43.2~52.8V |
||
|
Voltage Accuracy |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load Regulation |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
||
|
Set-up Time |
≤4S @115Vac，≤2S @230Vac |
|||||
|
Hold up Time |
≥12mS (230Vac input, Full load) |
|||||
|
Temperature Coefficient |
±0.03%/℃ |
|||||
|
Overshoot and Undershoot |
<5.0% |
|||||
|
INPUT |
VoltageRange |
90Vac~264Vac |
||||
|
FrequencyRange |
47Hz~63Hz |
|||||
|
Power factor (typical) |
PF＞0.98@115Vac, PF＞0.93@230Vac |
|||||
|
Efficiency (Typical) 230Vac input |
≥84% |
≥87% |
≥88% |
≥88% |
||
|
AC Current (max.) |
＜1.5 A |
|||||
|
Inrush Current (Typical) |
＜30@115Vac,<50A@230Vac Cold start |
|||||
|
Leakage Current |
Input—output: ≤0.25mA Input—PG: ≤3.5mA |
|||||
|
PROTECTION |
Over Load |
110%~150% of rated output current, hiccup mode, auto recovery |
||||
|
Over power |
110%~150% of rated output current, hiccup mode, auto recovery |
|||||
|
Short Circuit |
Long-term mode, auto recovery |
|||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-20℃~60℃; 20%~90%RH No condensing (refer to the derating curve) |
||||
|
Storage Temp. & Hum. |
-30℃~85℃; 10%~95%RH No condensing |
|||||
|
SAFETY &EMC Note 3 |
Safety Standards |
UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 |
||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. |
|||||
|
Isolation Resistance |
100Mohms |
|||||
|
EMSEmission |
Compliance to EN55022 Class B |
|||||
|
Harmonic Current |
Compliance to EN61000-3-2, Class A |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
|||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
||||
|
Dimension (L*W*H) |
129×98.3×37.6mm |
|||||
|
Packing |
|
|||||
|
Cooling method |
Cooling by free air convection |
|||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth 3.The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
|||||
