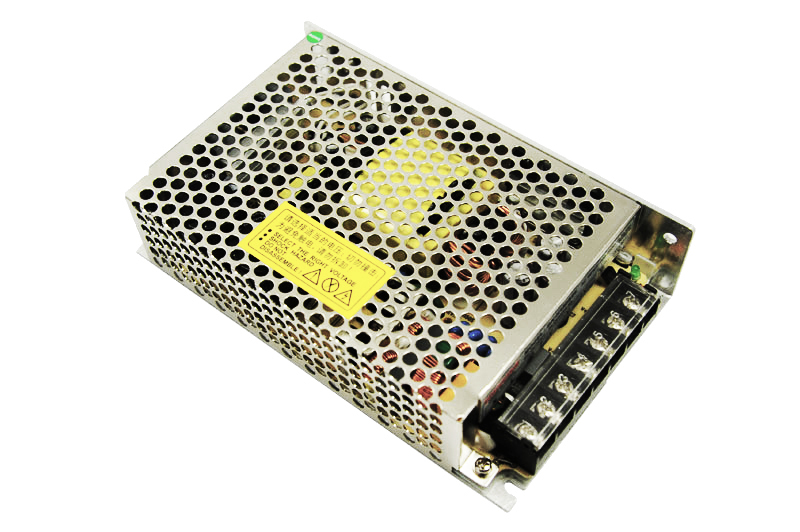

Product Name： IKGKF-150-series
Model：IKGKF-150
Notes： 150W AC/DC power supply, 90Vac~264Vac input
Built-in Active PFC function, PF>0.95
OLP/OVP/SCP/OTP/OPP protections
Wide operating ambient temp (-20℃~70℃)
PCB soldering side with conformal coating
Suitable for harsh Environment
Easy assembling from top side
Compact size , 160*99*38mm（L*W*H）
Applications: CNC system, Industrial Robot, man-machine interface,PLC, DC motors.
|
MODEL |
IKGKF-150-12 |
IKGKF-150-15 |
IKGKF-150-24 |
IKGKF-150-48 |
||
|
OUTPUT |
DC Output |
12V |
15V |
24V |
48V |
|
|
Rated Current |
12.5A |
10A |
6.3A |
3.2A |
||
|
CurrentRange Note 1 |
0~12.5A |
0~10A |
0~6.3A |
0~3.2A |
||
|
Ripple and Noise Note 2 |
0~70℃ |
≤100mV |
≤100mV |
≤100mV |
≤100mV |
|
|
-20~0℃ |
≤200mV |
≤200mV |
≤200mV |
≤200mV |
||
|
Voltage ADJ. Range |
10.8~13.2V |
13.5~16.5V |
21.6~26.4V |
43.2~52.8V |
||
|
Voltage Accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load Regulation |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
||
|
Set-up Time |
≤3S /115Vac，≤2S /230Vac |
|||||
|
Hold up Time |
≥10mS (220Vac input, Full load) |
|||||
|
Temperature Coefficient |
±0.03%/℃ |
|||||
|
Overshoot and Undershoot |
<5.0% |
|||||
|
INPUT |
VoltageRange |
90Vac~264Vac |
||||
|
FrequencyRange |
47Hz~63Hz |
|||||
|
Power factor (typical) |
PF＞0.98@115Vac, PF＞0.95@230Vac |
|||||
|
Efficiency (Typical) 230Vac input |
≥86% |
≥87% |
≥87% |
≥88% |
||
|
AC Current (max.) |
＜2 A |
|||||
|
Inrush Current (Typical) |
＜30A/115Vac,<45A/230Vac Cold start |
|||||
|
Leakage Current |
Input—output: ≤0.25mA Input—PG: ≤3.5mA |
|||||
|
PROTECTION |
Over Load |
105%~150% of rated output current, hiccup mode, auto recovery |
||||
|
Over power |
105%~150% of rated output current, hiccup mode, auto recovery |
|||||
|
Over Voltage |
115%~150% of rated output voltage, hiccup mode, auto recovery |
|||||
|
Over Temperature |
105℃+5℃(detect on Mosfet temperature);shut down,auto recovery after the temperature goes down to 60℃ |
|||||
|
Short Circuit |
Long-term mode, auto recovery |
|||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-20℃~70℃; 20%~90%RH No condensing (refer to the derating curve) |
||||
|
Storage Temp. & Hum. |
-30℃~85℃; 10%~95%RH No condensing |
|||||
|
SAFETY &EMC Note 3 |
Safety Standards |
UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 |
||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. |
|||||
|
Isolation Resistance |
100Mohms |
|||||
|
EMSEmission |
Compliance to EN55022 Class B |
|||||
|
Harmonic Current |
Compliance to EN61000-3-2, Class A |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
|||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
||||
|
Dimension (L*W*H) |
160×98.3×38mm |
|||||
|
Packing |
|
|||||
|
Cooling method |
Cooling by free air convection |
|||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be reconfirmed that it still meets EMC directives. |
|||||
