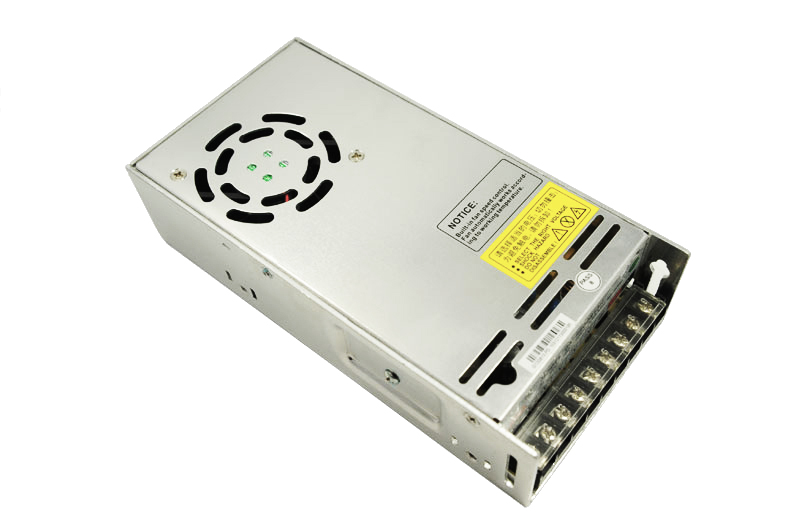

Product Name： IKGKF-200-series
Model：IKGKF-200
Notes： 200W AC/DC power supply, 90Vac~264Vac input
Built-in active PFC,PF>0.95
SCP/OLP/OVP/OTP Protections
All using 105℃ long life electrolytic capacitors.
Operating altitude up to 5000m
Easy assembling from top side
PCB both sides with conformal coating 199*98*50mm（L*W*H）
Applications: CNC system, Industrial Robot, man-machine interface,PLC, DC motors.
|
MODEL |
IKGKF-200-5II |
IKGKF-200-12II |
IKGKF-200-24II |
IKGKF-200-36II |
IKGKF-200-48II |
|
|
OUTPUT |
DC Output |
5.0V |
12V |
24V |
36V |
48V |
|
Rated Current |
40A |
16.7A |
8.4A |
5.6A |
4.2A |
|
|
CurrentRange Note 1 |
0~40A |
0~16.7A |
0~8.4A |
0~5.6A |
0~4.2A |
|
|
Ripple and Noise Note 2 |
<150mV |
<150mV |
<200mV |
<200mV |
<200mV |
|
|
Voltage ADJ. Range |
-5%~+10% of rated output voltage |
|||||
|
Voltage Accuracy |
±1.0% |
|||||
|
Line Regulation |
±0.5% |
|||||
|
Load Regulation |
±1.0% |
|||||
|
Set-up Time |
≤2S (230Vac input, Full load) |
|||||
|
Hold up Time |
≥10mS (230Vac input, Full load) |
|||||
|
Temperature Coefficient |
±0.03%/℃ |
|||||
|
Overshoot and Undershoot |
<5.0% |
|||||
|
INPUT |
VoltageRange |
85Vac~264Vac,120Vdc~370Vdc |
||||
|
FrequencyRange |
47Hz–63Hz |
|||||
|
Power Factor(Typical) |
PF＞0.98/115VAC PF＞0.95/230VAC |
|||||
|
Efficiency ( Typical) |
79% |
84% |
86% |
86.5% |
87.5% |
|
|
AC Current (max.) |
< 3.5A |
|||||
|
Inrush Current (Typical) |
<50A@230Vac <30A@115Vac Cold start |
|||||
|
Leakage Current |
Input—output:<0.25mA Input—PG:<1.0mA |
|||||
|
PROTECTION |
Over Load |
105%~150% of rated output current, Hiccup mode, auto recovery |
||||
|
Over power |
105%~150% of rated output power, hiccup mode, auto recovery |
|||||
|
Short Circuit |
Long-term mode, auto recovery |
|||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-25℃~70℃; 20%~90%RH No condensing(refer to the derating curve) |
||||
|
Vibration |
10 ~ 150Hz, 2G 10min./1cycle, period for60min. each along X,Y, Z axes |
|||||
|
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
|||||
|
SAFETY &EMC (Note 3) |
Safety Standards |
UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 |
||||
|
Withstand Voltage |
Primary-Secondary: 3.0KVac; ≤10mA .Primary-PG: 1.5KVac; ≤10mA. Secondary-PG: 0.5KVDC; ≤10mA. |
|||||
|
Isolation Resistance |
≥100M ohms |
|||||
|
EMI Conduction&Radiation |
Compliance to EN55022, Class B |
|||||
|
Harmonic Current |
Compliance to EN61000-3-2, Class D |
|||||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
|||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
||||
|
Dimension (L*W*H) |
199×99×50mm |
|||||
|
Packing |
||||||
|
Cooling method |
Cooling by forced air (built-in DC fan) |
|||||
|
NOTE |
1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||||
