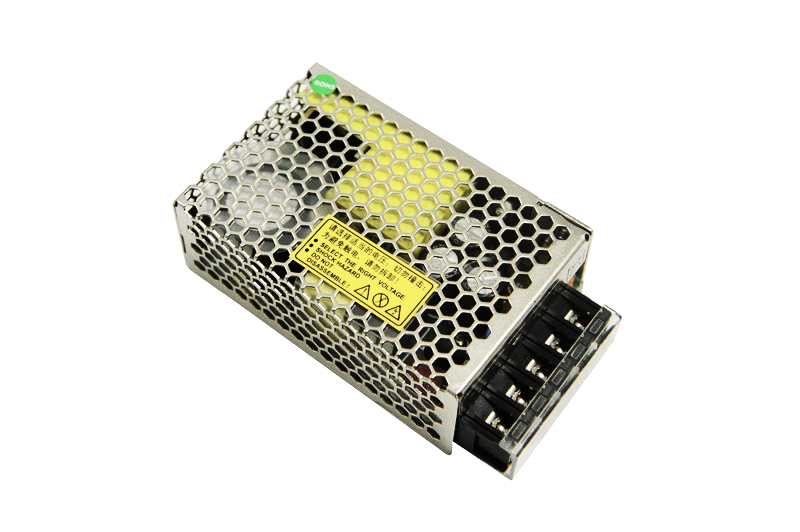

IKPD-25-s-series

Product Name： IKPD-25-s-series
Model：IKPD-25-s
Notes： No Load power consumption<0.5W Universal AC input range
Miniature size,high power density,high efficiency,long life and high reliability
Withstand 300VA surge input for 5 sec.
Output protections:OLP/OVP/SCP
Wide operating ambient temp (-25℃~70℃)，100% @50℃、60%@70℃
All using 105℃ long life electrolytic capacitors.
100% full load burn-in test
PCB soldering side with conformal coating
Suitable for critical applications

MODEL				IKPD-25-S3.3	IKPD-25-S5	IKPD-25-S12	IKPD-25-S15	IKPD-25-S24
OUTPUT	DC Output			3.3V	5V	12V	15V	24V
	Rated Current			5A	5A	2.1A	1.6 A	1.1A
	CurrentRange			0~5A	0~5A	0~2.1A	0~1.6A	0~1.1A
	Ripple and Noise Note 2		-25~70℃	<50mV	<50mV	<120mV	<120mV	<120mV
	Voltage ADJ. Range			-5%~+10% of rated output voltage
	Voltage Accuracy			±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	Line Regulation			±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation			±2.0%	±2.0%	±1.0%	±1.0%	±1.0%
	Set-up Time			＜2.0S (115Vac input, Full load); ＜1.0S (230Vac input, Full load)
	Hold up Time			＞14mS(115Vac input, Full load); ＞30mS(230Vac input, Full load)
	Temperature Coefficient			±0.03%/℃
	Overshoot and Undershoot			<5.0%
INPUT	VoltageRange			90Vac~264Vac，127~370Vdc
	FrequencyRange			47Hz~63Hz
	Efficiency ( Typical)	115Vac input		70%	76%	80%	82%	84%
		230Vac input		71%	78%	82%	83%	85%
	AC Current (max.)			0.7A	0.7A	0.7A	0.7A	0.7A
	Inrush Current (Typical)			<20A@115Vac <40A@230Vac Cold start
	Leakage Current			Input—output:<0.25mA Input—PG:<0.75mA
PROTECTION	Over Load			105%~150% of rated output current, hiccup mode,auto recovery
	Over Voltage			105%~150% of rated output voltage, Constant Voltage
	Short Circuit			Long-term mode, auto recovery
ENVIRONMENT	Operating amb. Temp. & Hum.			-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve)
	Storage Temp. & Hum.			-40℃~85℃; 10%~95%RH No condensing
SAFETY &EMC Note 3	Safety Standards			UL60950-1 2^nd Ed; IEC 60950-1:2005(2^nd Ed) ;EN60950-1:2006
	Withstand Voltage			Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA.
	Isolation Resistance			≥100M ohms
	EMC Emission			Compliance to EN55022,EN55024 ClassB
	Harmonic Current			Compliance to EN61000-3-2,-3
	EMC Immunity			Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level
OTHERS	MTBF (MIL-HDBK-217F)			More than 200,000Hrs (25℃, Full load)
	Dimension (LWH)			79×51×28.8mm
	Cooling method			Cooling by free air convection
	NOTE	1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details.
