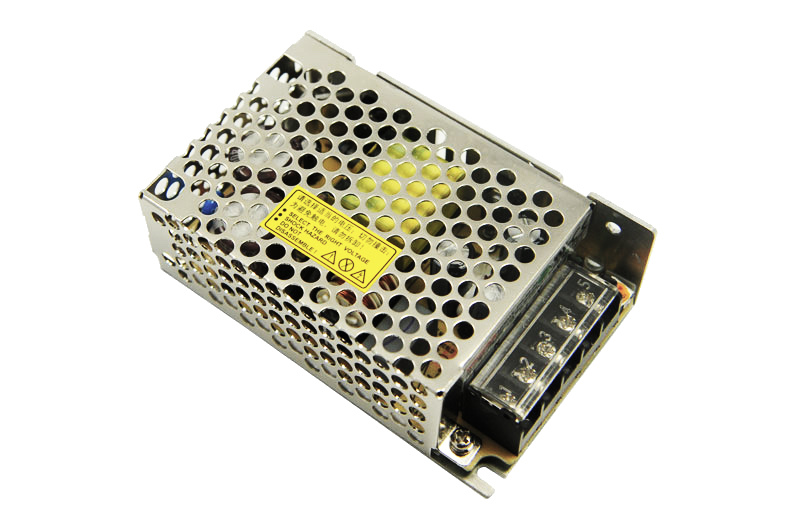

Product Name： IKPD-35-series
Model：IKPD-35
Notes： No Load power consumption<0.5W
Universal AC input range
Miniature size,high power density,high efficiency,long life and high reliability
Withstand 300VA surge input for 5 sec.
Output protections:OLP/OVP/SCP
Wide operating ambient temp (-25℃~70℃)，100% @50℃、60%@70℃
Operating altitude up to 5000M
All using 105℃ long life electrolytic capacitors.
100% full load burn-in test
Easy assembling from top side
PCB soldering side with conformal coating
Suitable for critical applications
|
MODEL |
IKPD-35-5 |
IKPD-35-12 |
IKPD-35-15 |
IKPD-35-24 |
IKPD-35-48 |
||
|
OUTPUT |
DC Output |
5V |
12V |
15V |
24V |
48V |
|
|
Rated Current |
6A |
3A |
2.4A |
1.5A |
0.76A |
||
|
CurrentRange |
0~6A |
0~3A |
0~2.4A |
0~1.5A |
0~0.76A |
||
|
Ripple and Noise Note 2 |
0~70℃ |
<50mV |
<80mV |
<120mV |
<120mV |
<180 mV |
|
|
-25~0℃ |
<80mV |
<180mV |
<200mV |
<200mV |
<240mV |
||
|
Voltage ADJ. Range |
-5%~+10% of rated output voltage |
||||||
|
Voltage Accuracy |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
±3.0% |
||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load Regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
||
|
Set-up Time |
＜1S (230Vac input, Full load); |
||||||
|
Hold up Time |
＞20mS(230Vac input, Full load); ＞10mS(120Vac input, Full load) |
||||||
|
Temperature Coefficient |
±0.03%/℃ |
||||||
|
Overshoot and Undershoot |
<5.0% |
||||||
|
INPUT |
VoltageRange |
90Vac~264Vac，127~370Vdc |
|||||
|
FrequencyRange |
47Hz~63Hz |
||||||
|
Efficiency ( Typical) |
115Vac input |
79% |
83% |
85% |
86% |
87% |
|
|
230Vac input |
80% |
84% |
86% |
87% |
88% |
||
|
AC Current (max.) |
<1A(max) |
||||||
|
Inrush Current (Typical) |
<50A@230Vac Cold start |
||||||
|
Leakage Current |
Input—output:<3.5mA Input—PG:<0.25mA |
||||||
|
PROTECTION |
Over Load |
105%~150% of rated output current, constant power,auto recovery |
|||||
|
Over Voltage |
105%~150% of rated output voltage, Constant Voltage |
||||||
|
Short Circuit |
Long-term mode, auto recovery |
||||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) |
|||||
|
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
||||||
|
SAFETY &EMC Note 3 |
Safety Standards |
UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 |
|||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. |
||||||
|
Isolation Resistance |
≥100M ohms |
||||||
|
EMC Emission |
Compliance to EN55022,EN55024 ClassB |
||||||
|
Harmonic Current |
Compliance to EN61000-3-2,-3 |
||||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level |
||||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
|||||
|
Dimension (L*W*H) |
101.6×63.5×33mm |
||||||
|
Cooling method |
Cooling by free air convection |
||||||
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. |
||||||
