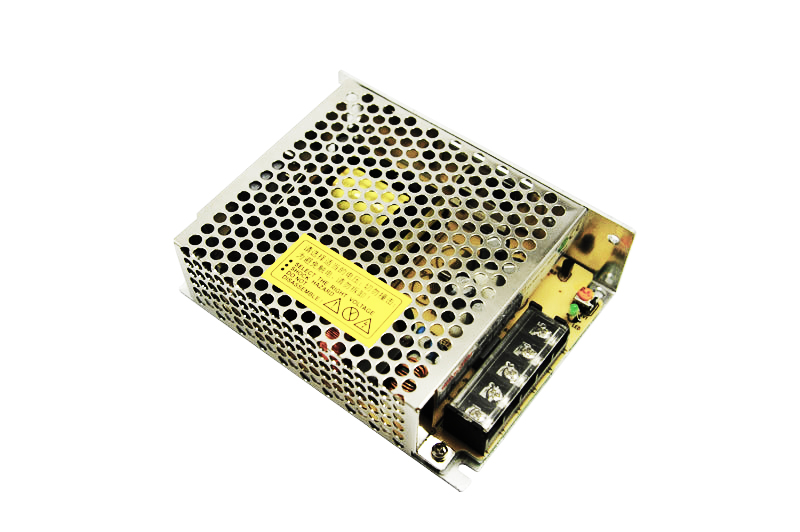

IKPD-75-series

Model：IKPD-75-series
Notes： No Load power consumption<0.5W Universal AC input range Miniature size,high power density,high efficiency,long life and high reliability Withstand 300VAC surge input for 5 sec.
Output protections:OLP/OVP/SCP
Wide operating ambient temp (-25℃~70℃)，100% @50℃、70%@70℃
Operating altitude up to 5000M
All using 105℃ long life electrolytic capacitors.
100% full load burn-in test
Easy assembling from top side
PCB soldering side with conformal coating
Suitable for critical applications

MODEL

IKPD-75-5

IKPD-75-12

IKPD-75-15

IKPD-75-24

IKPD-75-48

OUTPUT

DC Output

5V

12V

15V

24V

48V

Rated Current

12A

6A

5A

3.2.A

1.62A

CurrentRange Note 1

0~12A

0~6A

0~5A

0~3.2A

0~1.62A

Ripple and Noise

(-25℃~70℃) Note 2

<80mV

<120mV

<150mV

<200mV

<200 mV

Voltage ADJ. Range

-5%~+10% of rated output voltage

Voltage Accuracy

±3.0%

±3.0%

±3.0%

±3.0%

±3.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±2.0%

±2.0%

±2.0%

±2.0%

±2.0%

Set-up Time

＜2.0S (115Vac input, Full load); ＜1.5S (230Vac input, Full load)

Hold up Time

＞20mS(115Vac input, Full load); ＞50mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac，127~370Vdc

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

115Vac input

79%

84%

85%

87%

88%

230Vac input

80%

85%

86%

88%

89%

AC Current (max.)

<2.5A(max)

Inrush Current (Typical)

20A@115Vac 40A@230Vac Cold start

Leakage Current

Input—output:<0.25mA Input—PG:<0.75mA

PROTECTION

Over Load

105%~150% of rated output current, constant power

Over Voltage

105%~150% of rated output voltage, Constant Voltage

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA.

Isolation Resistance

≥100M ohms

EMC Emission

Compliance to EN55022,EN55024 ClassB

Harmonic Current

Compliance to EN61000-3-2,-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

129×98×38mm

NOTE

1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details.
