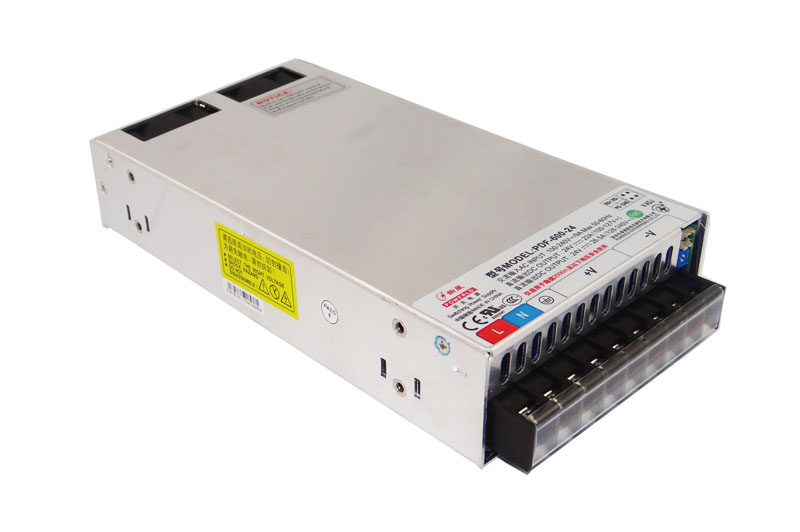

Product Name： IKPDF-600-series
Model：IKPDF-600
Notes： 600W AC/DC power supply
Built-in active PFC function,PF>0.96
Output protection: SCP/OLP/OVP/OTP
Wide operating ambient temperature (-30~70℃), 100% @50℃,80%@70℃
Using ZVS technology to reduce power dissipation
Built in AC inrush current limiting circuit(<20A)
Built in Remote Sense Function
Conformal coating at PCB both sides
Suitable for harsh Environment
1 U low profile 218*116.5*41mm（L*W*H）
Applications: The industry, Medical, Lighting, Communication etc. equipments which required high reliablity and stability power supplies
|
MODEL |
IKPDF-600-12 |
IKPDF-600-24 |
IKPDF-600-27 |
IKPDF-600-36 |
IKPDF-600-48 |
|||
|
OUTPUT |
DC Output |
12V |
24V |
27V |
36V |
48V |
||
|
Rated Current (100~127Vac) |
34A |
22A |
18V |
14A |
11A |
|||
|
Rated Current (128~264Vac) |
42A |
26.5A |
23V |
17.5A |
13.6A |
|||
|
Ripple and Noise Note 2 |
0-70℃ |
120mV |
150mV |
150mV |
150mV |
200mV |
||
|
-30℃ |
180mV |
150mV |
150mV |
150mV |
200mV |
|||
|
Voltage ADJ. Range |
-5%~+10% of rated output voltage |
|||||||
|
Voltage Accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
|||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.2% |
|||
|
Load Regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|||
|
Set-up Time |
＜1.5S (230Vac input, Full load), ＜3S (115Vac input, Full load) |
|||||||
|
Hold up Time |
＞16mS/ (230Vac input, Full load) |
|||||||
|
Temperature Coefficient |
±0.05%/℃ |
|||||||
|
Overshoot and Undershoot |
<5.0% |
|||||||
|
INPUT |
VoltageRange |
90Vac~264Vac,127Vdc~370Vdc |
||||||
|
FrequencyRange |
47Hz–63Hz |
|||||||
|
Power Factor(Typical) |
PF＞0.98/115VAC PF＞0.96/230VAC |
|||||||
|
Efficiency ( Typical) |
88% |
89% |
89% |
90% |
90% |
|||
|
AC Current (max.) |
<7A |
|||||||
|
Inrush Current (Typical) |
<20A@230Vac Cold start |
|||||||
|
Leakage Current |
Input—output: ≤0.1mA Input—PG: ≤0.75mA |
|||||||
|
PROTECTION |
Over Load |
110%~135% of rated output current, constant current |
||||||
|
Over Temperture |
105℃+5℃(detect on Mosfet temperature);shut down,auto recovery after the temperature goes down to 75℃ |
|||||||
|
Over Voltage |
110%~150% of rated voltage; constant voltage |
|||||||
|
Short Circuit |
Long-term mode, constant current, auto recovery |
|||||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-30℃~70℃; 20%~90%RH No condensing (refer to derating curve) |
||||||
|
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
|||||||
|
SAFETY &EMC (Note 3) |
Safety Standards |
UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 |
||||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVac;≤10mA. |
|||||||
|
Isolation Resistance |
≥100M ohms |
|||||||
|
EMI Conduction&Radiation |
Compliance to EN55022, CLASS B |
|||||||
|
Harmonic Current |
Compliance to EN61000-3-2, class D |
|||||||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
|||||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
||||||
|
Dimension (L*W*H) |
218×116.5×41mm |
|||||||
|
Packing |
||||||||
|
Cooling method |
Fored air cooling(Built-in fan) |
|||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|||||||
