ikano

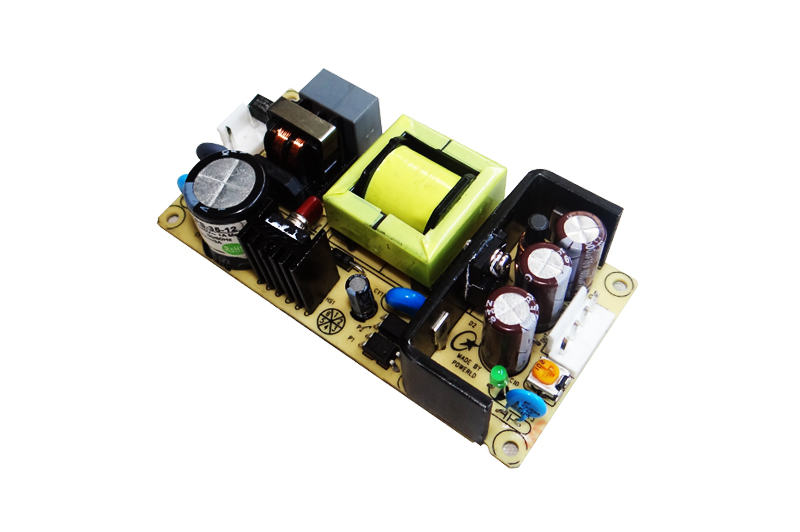

MODEL

IKPS-35-5

IKPS-35-12

IKPS-35-24

IKPS-35-48

OUTPUT

DC Output

5V

12.0V

24.0V

48.0V

Rated Current

6A

3.0A

1.5 A

0.75A

Ripple and Noise

Note 2

0~65℃

≤80mV

<120mV

<120mV

<120mV

-20℃~0℃

≤150mV

<200mV

<200mV

<200mV

Voltage ADJ. Range

4.75~5.5V

11.4~13.2V

22.8~26.4V

45.6~52.8V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

≤2.0S @ 115Vac ≤1.0S @ 230Vac full load

Hold up Time

≥10mS @ 115Vac ≥20mS @ 230Vac full load

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange Note 3

90Vac~264Vac, 90Vac input full load

FrequencyRange

47Hz-63Hz

Efficiency ( Typical)

220Vac input

≥78%

≥81%

≥83%

≥86%

AC Current (max.)

＜1.0A

Inrush Current (Typical)

＜23A@115Vac ＜45A@230Vac Cold start

Leakage Current

Input to Output: ≤3.5mA ; Input to PG: ≤0.25mA

PROTECTION

Over Load

6.3~10.8A

3.15~5.4A

1.58~2.7A

0.78~1.35A

Protection type: Hiccup model, Auto recovery

Over Voltage

5.75~7.5V

13.8~16.2V

27.6~32.4V

55.2~64.8V

Protection type: Constant voltage, Auto recovery

Over Power

31.5~54W

37.8~64.8W

37.9~64.8W

37.4~64.8W

Protection type: Hiccup model, Auto recovery

Shorted Circuit

Long-term mode, Auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~65℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-30℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

(Note 4)

Safety Standards

UL60950-1; EN60950-1：2006

Withstand Voltage

Input-Output:3.0KVac/10mA ; Output-PG: 1.5KVac/10mA;Output-PG: 0.5KVdc/10mA

Isolation Resistance

≥100M ohms

EMI Conduction&Radiation

Compliance to EN55022 Class B FCC PART15B

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (35℃, Full load)

Dimension (L*W*H)

101.6×50.8×24mm

Packing

Cooling method

Cooling by free air convection

NOTE

1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
