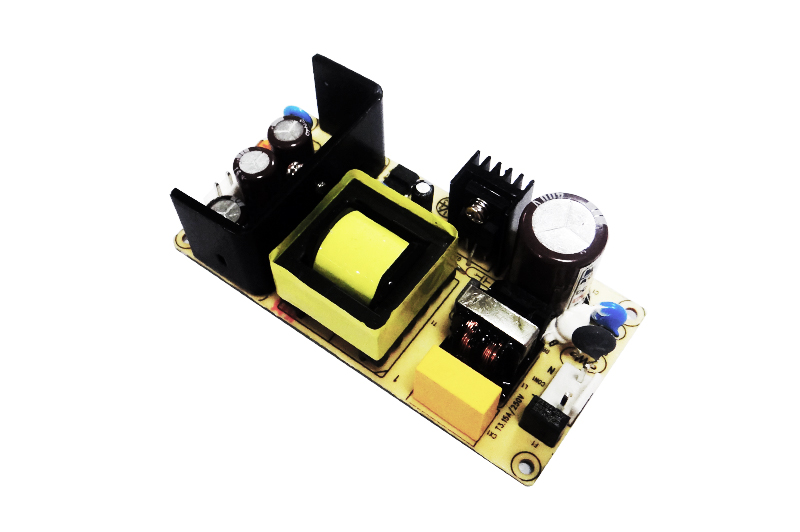

Model：IKPS-45-S
Notes： Universal AC input/ Full range (90~264Vac)
High Efficiency, long life and high reliability
Output protections: SCP/OVP/ OLP/OPP
Wide operating ambient temperature (-10℃~60℃)
All using 105℃long life electrolytic capacitors.
100% full load burn-in test
|
MODEL |
IKPS-45-S12 |
IKPS-45-S24 |
IKPS-45-S48 |
||
|
OUTPUT |
DC Output |
12V |
24V |
48V |
|
|
Rated Current |
3.7A |
1.9A |
1A |
||
|
Ripple and Noise Note 2 |
0~60℃ |
≤120mV |
≤120mV |
≤120mV |
|
|
-10℃~0℃ |
≤200mV |
≤200mV |
≤200mV |
||
|
Voltage ADJ. Range |
11.4~13.2V |
22.8~26.4V |
45.6~52.8V |
||
|
Voltage Accuracy |
±3.0% |
||||
|
Line Regulation |
±1.0% |
||||
|
Load Regulation |
±3.0% |
||||
|
Set-up Time |
≤0.8S @ 230Vac full load |
||||
|
Hold up Time |
≥60mS @ 230Vac full load |
||||
|
Temperature Coefficient |
±0.05%/℃ |
||||
|
Overshoot and Undershoot |
<5.0% |
||||
|
INPUT |
VoltageRange Note 3 |
90Vac~264Vac |
|||
|
FrequencyRange |
47Hz-63Hz |
||||
|
Efficiency ( Typical) |
220Vac input |
≥82% |
≥85% |
≥86% |
|
|
AC Current (max.) |
＜1A（115VAC） ＜0.6A（230VAC） |
||||
|
Inrush Current (Typical) |
＜20A@115Vac ＜45A@230Vac Cold start |
||||
|
Leakage Current |
Input to Output: ≤0.25mA ; Input to PG: ≤3.5mA |
||||
|
PROTECTION |
Over Load |
3.9~6.2A |
2.0~3.2A |
1.1~1.56A |
|
|
Protection type: Hiccup mode, auto recovery |
|||||
|
Over Voltage |
13.8~16.2V |
27.6~32.4V |
55.2~64.8V |
||
|
Protection type: Constant voltage, Auto recovery |
|||||
|
Over Power |
46.8~75W |
48~75W |
53~75W |
||
|
Protection type: Hiccup mode, auto recovery |
|||||
|
Shorted Circuit |
Long-term mode, auto recovery |
||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-10℃~60℃; 20%~90%RH No condensing (refer to the derating curve) |
|||
|
Storage Temp. & Hum. |
-25℃~85℃; 10%~95%RH No condensing |
||||
|
SAFETY &EMC (Note 4) |
Safety Standards |
UL60950-1; EN60950-1：2006 |
|||
|
Withstand Voltage |
Input-Output:3.0KVac/10mA ; Output-PG: 1.5KVac/10mA;Output-PG: 0.5KVdc/10mA |
||||
|
Isolation Resistance |
≥100M ohms |
||||
|
EMI Conduction&Radiation |
Compliance to EN55022 Class B |
||||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) |
|||
|
Dimension (L*W*H) |
101.6×51×28mm |
||||
|
Packing |
|||||
|
Cooling method |
Cooling by free air convection |
||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||
