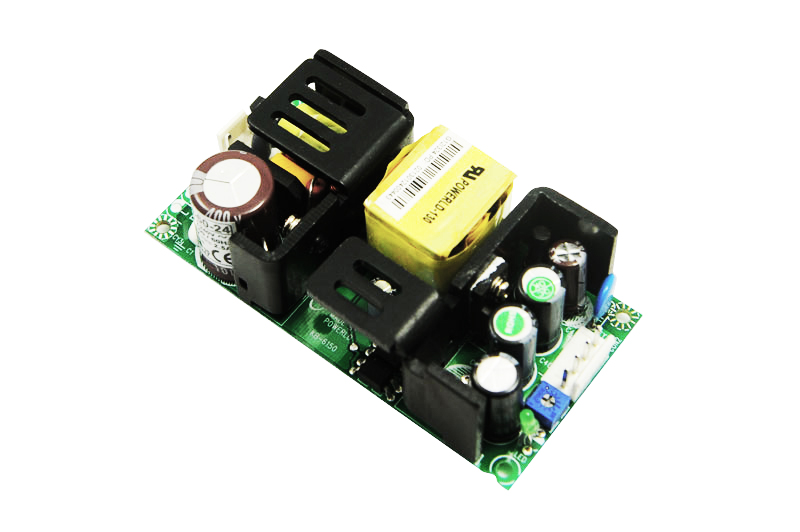

Model：IKPS-60-series
Notes： Universal AC input 90~264Vac
High Efficiency, low power consumption
Output protections: SCP/OVP/ OLP/OPP
Wide operating ambient temperature (-25℃~70℃)
All using 105℃long life electrolytic capacitors.
100% full load burn-in test
|
MODEL |
IKPS-60-5 |
IKPS-60-12 |
IKPS-60-15 |
IKPS-60-24 |
IKPS-60-48 |
||
|
OUTPUT |
DC Output |
5.0V |
12.0V |
15.0V |
24.0V |
48.0V |
|
|
Rated Current |
8.0A |
4.5A |
3.6A |
2.5 A |
1.25A |
||
|
Ripple and Noise Note 2 |
0~70℃ |
<50mV |
<120mV |
<150mV |
<240mV |
<240mV |
|
|
-25℃~0℃ |
<200mV |
<200mV |
<150mV |
<240mV |
<240mV |
||
|
Voltage ADJ. Range |
-5% ~ +10% of rated voltage |
||||||
|
Voltage Accuracy |
±3.0% |
||||||
|
Line Regulation |
±0.5% |
||||||
|
Load Regulation |
±2.0% |
||||||
|
Set-up Time |
≤1.0S (230Vac input, Full load) |
||||||
|
Hold up Time |
≥20mS(230Vac input, Full load) |
||||||
|
Temperature Coefficient |
±0.03%/℃ |
||||||
|
Overshoot and Undershoot |
<5.0% |
||||||
|
INPUT |
VoltageRange Note 3 |
90Vac~264Vac, 127Vdc~370Vdc |
|||||
|
FrequencyRange |
47Hz-63Hz |
||||||
|
Efficiency ( Typical) |
81% |
84% |
84% |
86% |
87% |
||
|
AC Current (max.) |
＜1.5A |
||||||
|
Inrush Current (Typical) |
＜30A@120Vac ＜60A@230Vac Cold start |
||||||
|
Leakage Current |
<0.25mA |
||||||
|
PROTECTION |
Over Load |
105%~180% of rated output current, hiccup mode, auto recovery |
|||||
|
Over Power |
105%~180% of rated output power, hiccup mode, auto recovery |
||||||
|
Over Voltage |
105%~150% of rated output voltage, Constant voltage |
||||||
|
Shorted Circuit |
Long-term mode, auto recovery |
||||||
|
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) |
|||||
|
Storage Temp. & Hum. |
-30℃~85℃; 10%~95%RH No condensing |
||||||
|
SAFETY &EMC (Note 4) |
Safety Standards |
UL60950-1; EN60950-1：2006 |
|||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac; ≤10mA . |
||||||
|
Isolation Resistance |
≥100M ohms |
||||||
|
EMI Conduction&Radiation |
Compliance to EN55022, FCC PRAT15 B Class B |
||||||
|
Harmonic Current |
Compliance to EN61000-3-2,-3 |
||||||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level |
||||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 200,000Hrs (25℃, Full load) MIL-217 Method 2 Components Stress Method |
|||||
|
Dimension (L*W*H) |
101.6×50.8×30mm |
||||||
|
Packing |
|||||||
|
Cooling method |
Cooling by free air convection |
||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||||
