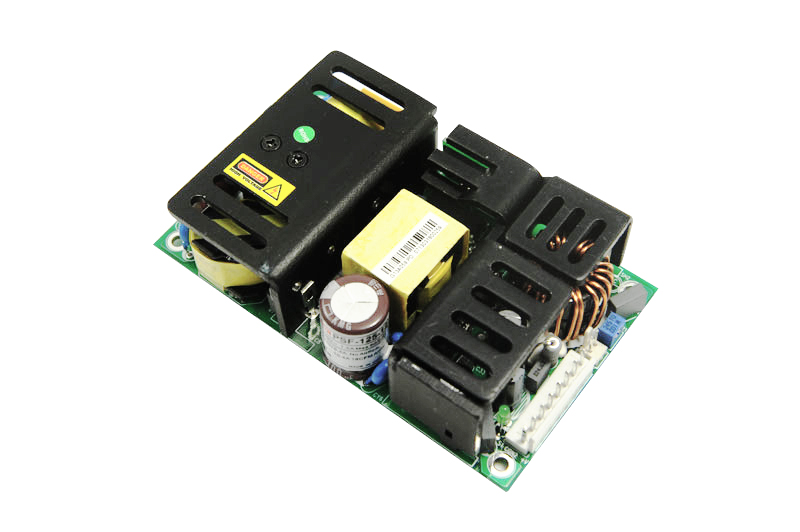

Model：IKPSF-125-series
Notes： Universal AC input/ Full range
High power density,High effiency and reliability
Output protections: OLP/OVP/SCP
Wide operating ambient temperature (-20℃~70℃)
Build-in remote sense function
All using 105℃long life electrolytic capacitors.
100% full load burn-in test
|
MODEL |
IKPSF-125-5 |
IKPSF-125-12 |
IKPSF-125-15 |
IKPSF-125-24 |
IKPSF-125-36 |
IKPSF-125-48 |
|
|
OUTPUT |
DC Output |
5V |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
20A |
10.5A |
8.4A |
5.2A |
3.5A |
2.6A |
|
|
CurrentRange Note 1 |
0~20A |
0~10.5A |
0~8.4A |
0~5.2A |
0~3.5A |
0~2.6A |
|
|
Ripple and Noise Note 2 |
100mV |
100mV |
100mV |
100 mV |
120 mV |
150 mV |
|
|
Voltage ADJ. Range |
±10% of rated output voltage |
||||||
|
Voltage Accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
|
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load Regulation |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
|
|
Set-up Time |
<=1200mS (230Vac input, Full load) <=2500mS (115Vac input, Full load) |
||||||
|
Hold up Time |
>=17mS(115/230Vac input, Full load) |
||||||
|
Temperature Coefficient |
±0.03%/℃ |
||||||
|
Overshootand Undershoot |
<5.0% |
||||||
|
INPUT |
VoltageRange |
90Vac~264Vac,127Vdc~370Vdc |
|||||
|
FrequencyRange |
47Hz–63Hz |
||||||
|
Power Factor(Typical) |
PF＞0.98/115VAC PF＞0.93/230VAC |
||||||
|
Efficiency ( Typical) |
82%/115Vac |
85%/115Vac |
85%/115Vac |
85%/20Vac |
86%/115Vacin |
86%/115Vac |
|
|
84%/230Vac |
87%/230Vac |
87%/230Vac |
87%/230Vac |
88%/230Vac |
88%/230Vac |
||
|
AC Current (max.) |
1.5A |
1.5A |
1.5A |
1.5A |
1.5A |
1.5A |
|
|
Inrush Current (Typical) |
60A@230Vac 30A@115Vac Cold start |
||||||
|
Leakage Current |
<3.5mA |
||||||
|
PROTECTION |
Over Current |
105%~150% of rated output current, hiccup mode, auto recovery |
|||||
|
Over Voltage |
120%~150% of rated output voltage,hiccup mode |
||||||
|
Short Circuit |
Auto recovery |
||||||
|
ENVIRONMENT |
OperatingambTemp& Hum |
-20℃~70℃; 20%~90%RH No condensing |
|||||
|
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
||||||
|
SAFETY &EMC Note 3 |
Safety Standards |
GB4943-2011; EN60950-1：2006 |
|||||
|
Withstand Voltage |
Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC；≤10mA . |
||||||
|
Isolation Resistance |
100M ohms |
||||||
|
EMI Conduction&Radiation |
Compliance to EN55022(CISPR22)ClassB |
||||||
|
Harmonic Current |
Compliance to EN61000-3-2,-3 |
||||||
|
EMSImmunity |
Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA |
||||||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 100,000Hrs (25℃, Full load) |
|||||
|
Dimension (L*W*H) |
127×76×30.5mm |
||||||
|
Packing |
|||||||
|
Cooling method |
Cooling by free air convection |
||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||||
